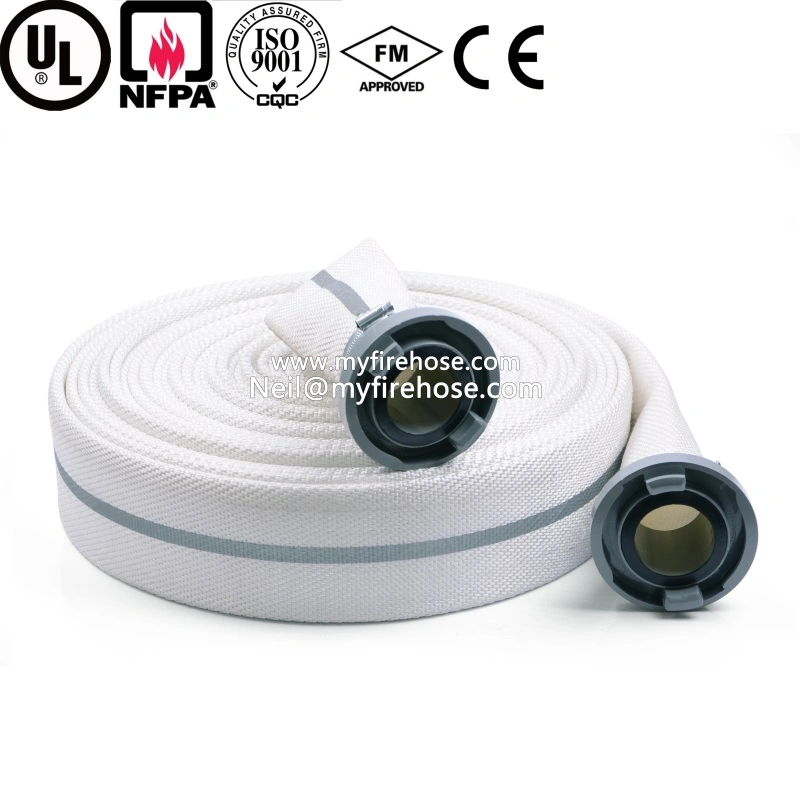

Double jacket high-pressure Fire Fighting Hose
Material:PVC
Color: white, red, yellow
Length:15m,20m, 25m,30m
Features:
The hose has double jackets,the warp of the jacket is made by high strength polyester staple. And the weft must be high strength polyester filament with low elongation. ,in plain or twill weaving.
It is more aging and ozone resistant.
High pressure
Long using life
Application:
Industrial and municipal building fire fighting
Marine fire fighting
Industrial plant , agriculture and construction site water
discharge service or wash down
Double jacket high-pressure Fire Fighting Hose
Material:PVC
Color: white, red, yellow
Length:15m,20m, 25m,30m
Features:
The hose has double jackets,the warp of the jacket is made by high strength polyester staple. And the weft must be high strength polyester filament with low elongation. ,in plain or twill weaving.
It is more aging and ozone resistant.
High pressure
Long using life
Application:
Industrial and municipal building fire fighting
Marine fire fighting
Industrial plant , agriculture and construction site water
discharge service or wash down
| Technical Requirements | Temperature Range | length | |||
| Size (Inch/mm) | Working Pressure (Bar/Psi) | Burst Pressure (Bar/Psi) | -22ºF to 158ºF (-30ºC to 70ºC) | 15-30m/50-100FT | |
| 1" | 25 | 13/188, 16/235. 20/300, 28/400 | 39/570, 48/705. 60/900.84/1200 | ||
| 1-1/2" | 38 | 13/188, 16/235. 20/300, 28/400 | 39/570, 48/705. 60/900.84/1200 | ||
| 1-3/4" | 45 | 13/188, 16/235. 20/300, 28/400 | 39/570, 48/705. 60/900.84/1200 | ||
| 2" | 52 | 13/188, 16/235. 20/300, 28/400 | 39/570, 48/705. 60/900.84/1200 | ||
| 2-1/2" | 65 | 13/188, 16/235. 20/300, 28/400 | 39/570, 48/705. 60/900.84/1200 | ||
| 3" | 75 | 13/188, 16/235. 20/300, | 39/570, 48/705. 60/900. | ||
| 4" | 100 | 10/150, 13/188, 16/235. 20/300, | 30/450, 39/570, 48/705. 60/900. | ||
| 5" | 125 | 10/150, 13/188, 16/235. | 30/450, 39/570, 48/705. | ||
| 6" | 150 | 10/150, 13/188, 16/235. | 30/450, 39/570, 48/705. | ||
